What we deliver
- LPG and propane spheres to ASME VIII Div 2 — 21.5 bar(g)
- NGL spheres — SA 516 Gr.70N, NACE and HIC compliant
- Cryogenic ethylene tanks — 9% nickel inner tank, concrete outer wall
- LPG bullets and above-ground / underground tanks
- Central gas systems and LPG skids
LNG, LPG & Cryogenic — projects
ADNOC Gas · NGLMERAM NGL Storage Sphere
Ø 18.5 m NGL sphere with shell plates beyond 128 mm — the heaviest fabricated in the UAE — NACE and HIC compliant for sour gas.
Cryogenic · 9% NiBorouge 4 Ethylene Storage Tank
Ø 41 m × 25 m cryogenic ethylene tank — 9% nickel inner tank in a concrete outer wall. Cylingas's first full cryogenic storage EPC.
Main EPC · ASME Div 2DUGAS Pressurised Propane Spheres
Two Ø 21 m propane spheres, 63 mm shell, 896 t each, 21.5 bar(g) — design through commissioning as main EPC contractor.
Emirates Gas — 18 LPG Tanks & Tanker Refurbishment
Design and supply of 18 LPG tanks plus tanker repair and refurbishment under various contracts.
EMARAT — 150 MT LPG Tank
Design and supply of a 150 MT above-ground LPG storage tank.

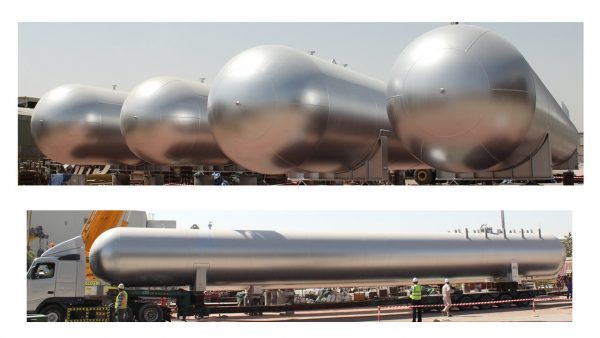

LPG · ExportAl Madina Porcelain Factory, Sudan — LPG Bullets
Design and supply of four LPG storage bullets for a ceramics plant in Sudan.

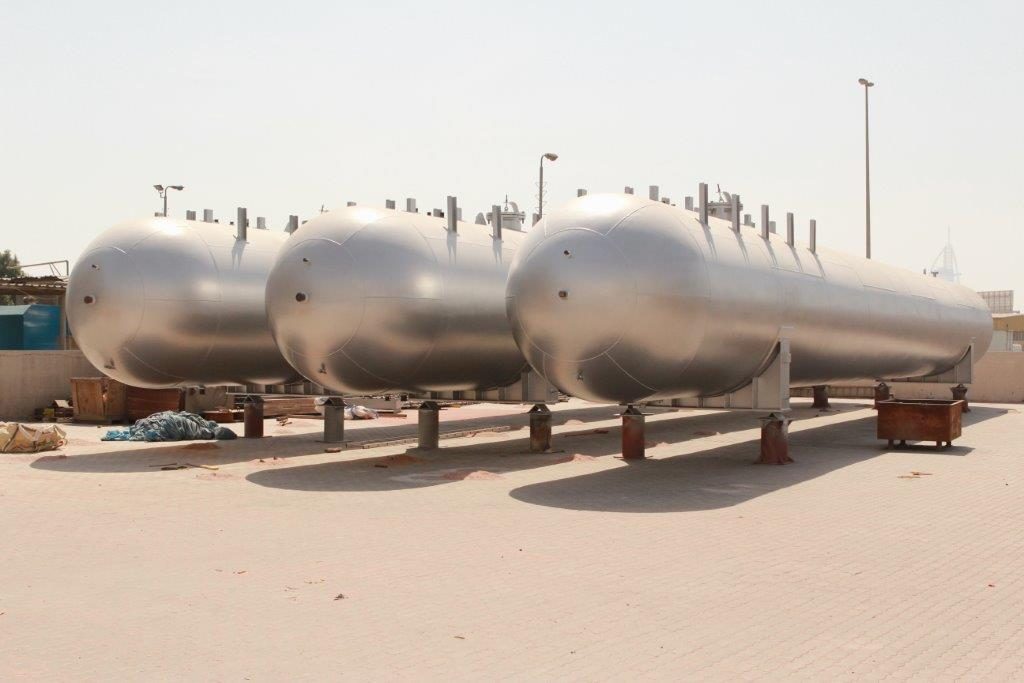

LPG · ExportAl Masa Porcelain Factory, Sudan — LPG Tank
Design and supply of a 75 MT above-ground LPG tank.
ADNOC FOD — 10 LPG Bullets
Design, fabrication, testing, painting and transport of ten LPG bullets for ADNOC Fuel Oil Distribution.
ADNOC Distribution — 100 t LPG Tanks (1996)
Two 100-tonne LPG tanks of Ø 3.66 m × 46 m with 26 mm shells — Cylingas's early ADNOC work.
